Pipe elbows – Abrasion resistant pipe

[products limit=”24″ columns=”3″ category=”Pipe Elbows”]

[table id=104 /]

General standard & certifications of fittings

In pipe fittings as well, standards play a vital role. The manufacture and installation of pipe fittings is tightly regulated by various standards and codes. Who decides on standards and specifications for butt weld fittings ? Manufacturers of butt weld pipe fittings have to meet specifications and requirements of many organizations, to assure quality, compatibility…
MSS SP-97

MSS SP-97 Standard Practice covers essential dimensions, finish, tolerances, testing, marking, material, and minimum strength requirements

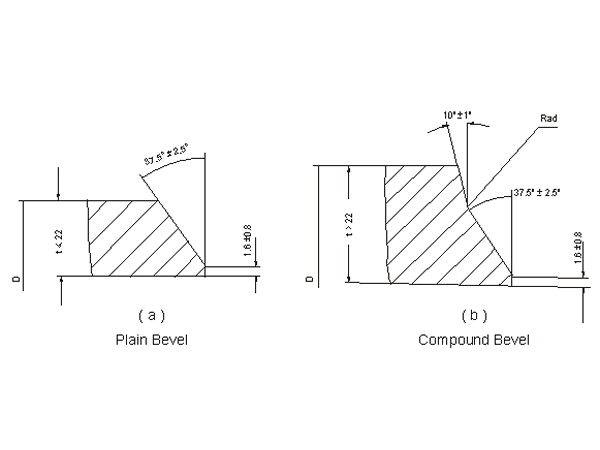

ANSI/ASME B16.25

ANSI/ASME B16.25 Standard covers the preparation of butt welding ends of piping components to be joined into a piping system by welding.

[table id=95 /]

Definition of Pipe elbow

An elbow is a pipe fitting installed between two lengths of pipe or tubing to allow a change of direction, usually a 90° or 45° angle, though 22.5° elbows are also made.

What Parts of the exported elbows?

The custom degree elbows can be manufactured directly from the production design,also can be cut from a standard elbow.For example,the cut the 70 degree elbows from a 90 degree one.

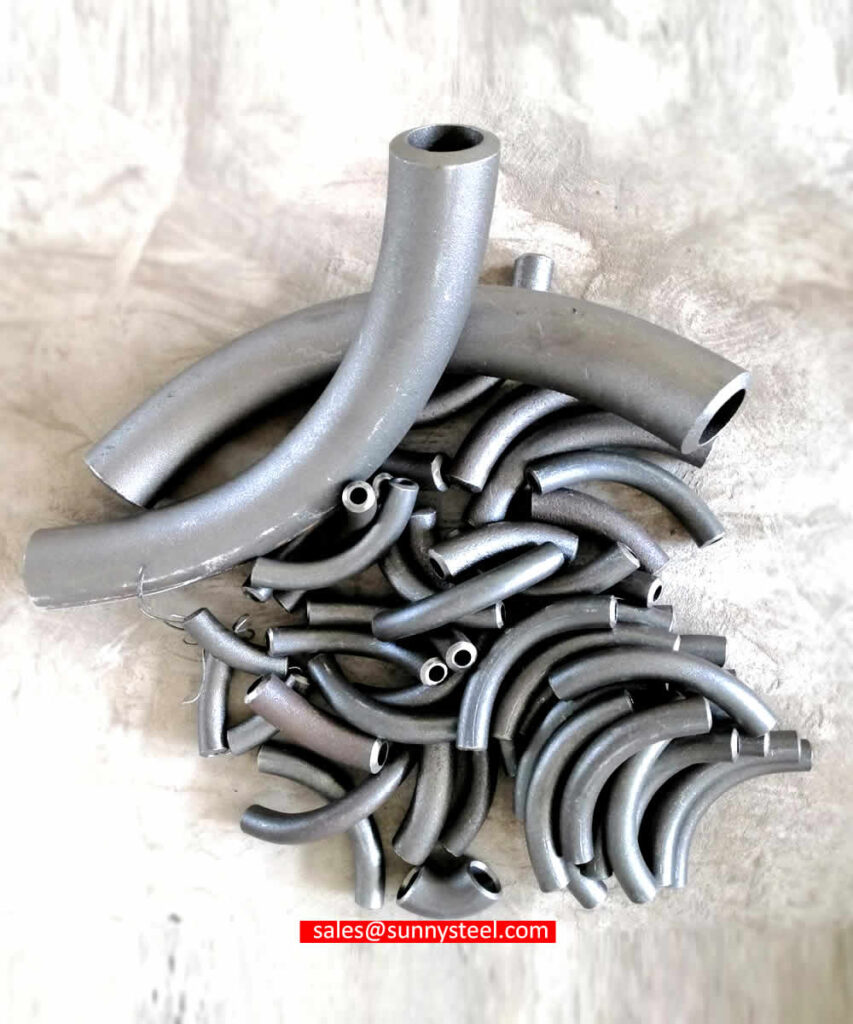

Bends & elbows are epxorted to UAE

5D Bend , A 105 BE, SMLS ASME B 16.9 Size : ¾” SCH 80 , 45 Deg.

6D Bend , Size : ½” SCH 160, 45 Deg, A 420 WPL6, BE , SMLS

6D Bend , Size : 2” SCH 160, 45 Deg. A 420 WPL6 WPL6, BE , SMLS

6D Bend , Size : ¾” SCH 160, 45 Deg, A 420 WPL6, BE , SMLS

6D Bend , Size : ¾” SCH 160, 90 Deg. A 420 WPL6, BE , SMLS

6D Bend , Size : ½” , SCH 160, 90 Deg. A 420 WPL 6, BE SMLS

6D Bend , Size : ½” SCH 40, 90 Deg . A 420 WPL 6, BE SMLS
