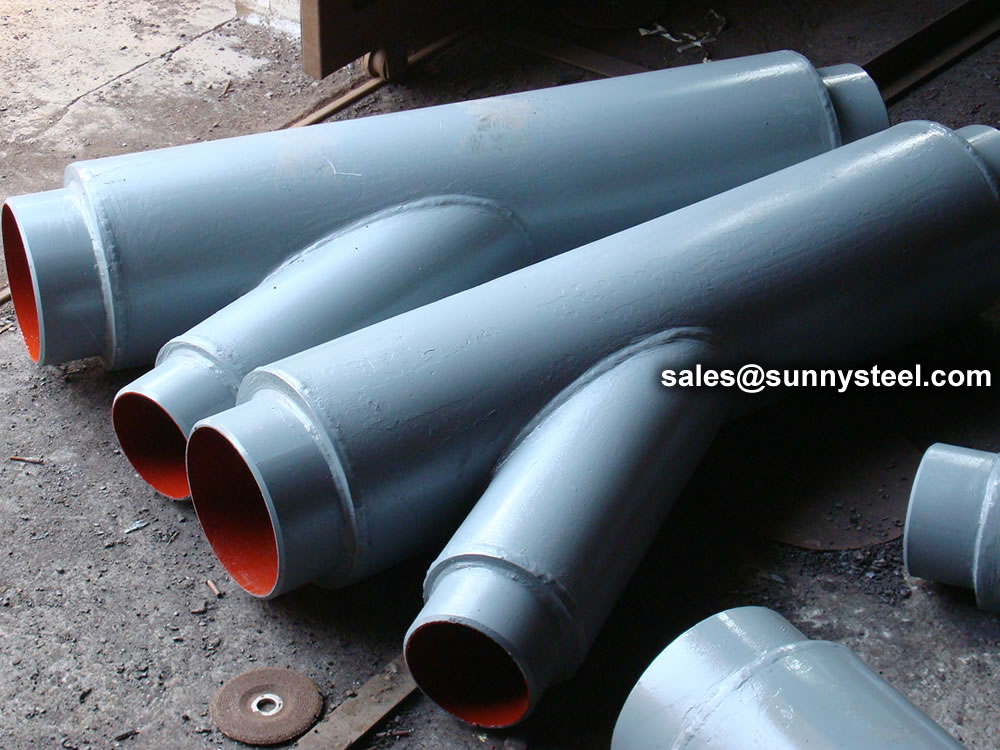

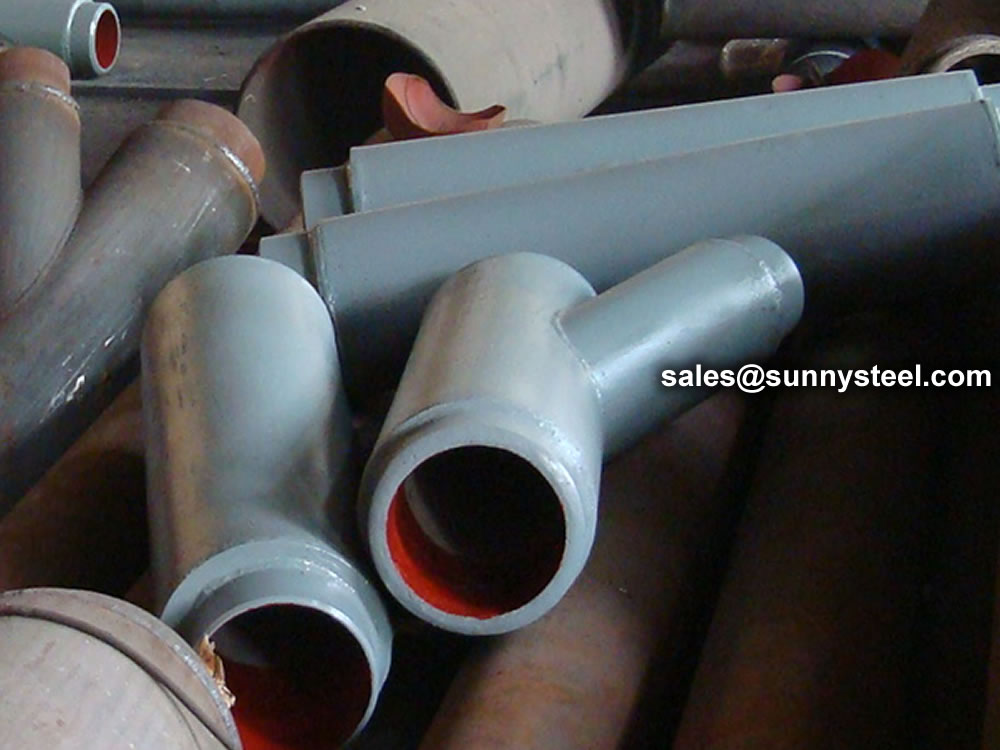

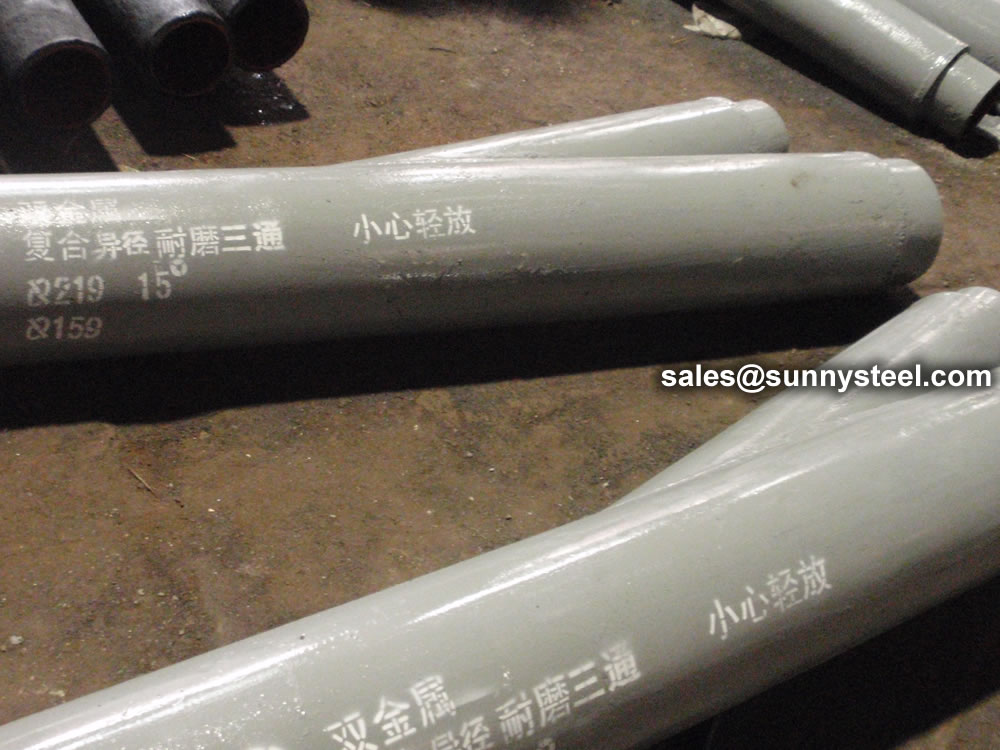

Bi-metal clad lateral wye
The Bi-metal clad lateral wye made of high chromium cast iron pipe is an alloy steel for high temperature and high pressure service. Bi-metal clad lateral wyes are used to to allow one pipe to join another pipe at some degree or angle.
Description
The Bi-metal clad lateral wye made of high chromium cast iron pipe is an alloy steel for high temperature and high pressure service. Bi-metal clad lateral wyes are used to to allow one pipe to join another pipe at some degree or angle.
Features of High chromium cast iron pipes
The late eighty`s, American technology of rare earth wear resistant steel was introduced into our country. The relevant experts researched and made many experiments. The rare-earth wear-resistant steel had occupied the main position.Rare-earth wear-resistant steel is based on 40 steel. Cr, Ni, Si, Mo, Mn, Re elements are mixed in 40 steel forming low alloy steel which carbon content is 0.35~ 0.45%.
Physical Properties of Bi-metal clad pipe
| Flexure Strength | Tensile Strength | Elongation | Cross Section Stretch Ratio | Impact Toughness | Hardness of Wearable Layer | Hydrostatic Testing Pressure |
|---|---|---|---|---|---|---|
| MN/㎡ | MN/㎡ | % | % | J/c㎡ | HRC | Mpa |
| >610 | >700 | 5 | 5.1 | >15 | >38 | 5.6-12.9 |
Chrome-Moly
- Chromium-Molybdenum Alloy Steel or Chrome-Moly, CrMo is an alloy steel intended for high temperature and high pressure services.
- Chrome-Moly is used in the power generation industry and the petro-chemical industry because of its tensile strength, corrosion resistance and high-temperature strength.
- Chrome-Moly has a better strength to Weight ratio than steel, which enables designers to use thinner wall pipe or smaller diameter tubing to reduce overall weight.
- Chromium-Molybdenum Alloy Steel has strong resistance to rupturing at high temperatures and high pressures.
- Chrome-Moly is also resistant to cracking from hydrogen attack and hot sulfide corrosion cracking.
- Chrome-Moly grades P-11, P-22, P-91 and P-92 are used in the power industry.
- Chrome-Moly grades P-5 and P-9 are used in petro-chemical refinery processes.
- Chrome-Moly Forged Fittings & Flanges are available in grades F-5, F-9, F-11, F-22, F-91, F92.
- Chrome-Moly Alloy Butt Weld Fittings are available in grades WP-5, WP-9, WP-11, WP-22, SP-91, WP-92.
- F11 and F22 meet NACE-MRO 175.
Performance indicators
- Grade: ZG40CrNiMoMnSiRe
- Hardness: HRC ≥ 40
- Impact toughness: ≥ 14J/cm2
- Tensile strength: ≥ 700MPa
Bimetal wear resistant products including: double metal wear-resisting straight pipe and double metal wear-resisting bend, double metal wear tee, double metal wear resistance reducer adopts the pipe fittings such as vacuum suction casting composite process, its advanced technology, effectively solve the problem of the bent pipe cannot be composite, bending and other various special-shaped pipe can do the whole compound, don’t change the material flow in the pipe bending trajectory, reduce resistance material conveying.
The outer wall of the centrifugal pipe is made of carbon steel, which ensures that the bimetal wear-resistant pipe has high mechanical strength and impact resistance.The inner lining wear resistance layer adopts the anti-wear alloy steel series independently developed by our company. The steel mainly adds alloy such as cr-ni-mo-cu-re and so on. Through the tempering heat treatment process, the alloy steel has strong wear resistance and corrosion resistance, high mechanical strength and impact resistance.
The whole set of process of our factory is the first in China, which fills the blank of anti-corrosion and wear-resistant industrial pipeline in China and has reached the international advanced level. It has been widely used in mining, metallurgy, coal, electric power and other industries, and is an ideal wear-resistant pipeline.
