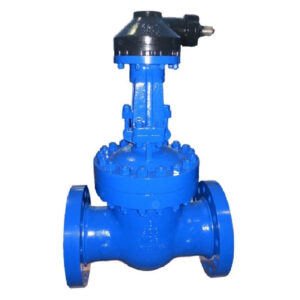

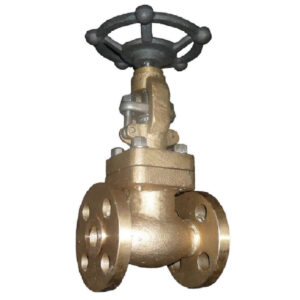

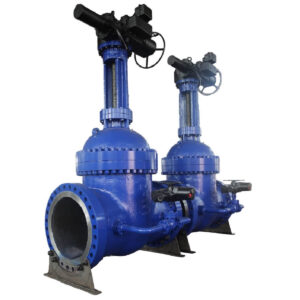

Gate Valve

A gate valve, also known as a sluice valve, is a valve that opens by lifting a barrier (gate) out of the path of the fluid.

A gate valve is the most common valve for water supply systems. It represents a linear-motion isolation valve and has a function to stop or allow the flow. Gate valves got their name from the closure element sliding into the flow stream to provide shutoff and, therefore, acting like a gate.

What is a gate valve used for?

A gate valve is the most common valve for water supply systems. It represents a linear-motion isolation valve and has a function to stop or allow the flow. Gate valves got their name from the closure element sliding into the flow stream to provide shutoff and, therefore, acting like a gate. Gate valves are used to isolate specific areas of the water supply network during maintenance, repair works, new installations, as well as to reroute water flow throughout the pipeline.

Design & parts of a gate valve

A gate valve has a simple design and can be applied in many low pressure-drop services, which makes it one of the most common valves in use today. Gate valves are designed as full-port valves. This means that the valve port is of the same size as the inner diameter of the connecting pipe. Full-bore gate valve passes the fluid flow without any obstructions to a flow and do not cause a pressure drop in a pipeline. This also allows to clean the pipe using a cleaning pig.

A resilient seated gate valve with a non-rising spindle consists of the following parts:

  • wedge
  • ductile iron valve body
  • seating area
  • stem (spindle)
  • spindle bearing
  • bonnet
  • packing.

The body is the largest element of the gate valve. Since the spindle remains in the valve body during rotation, it allows an economical bonnet construction. The valve bonnet itself is joined to the body with bolts, which allows cleaning and maintenance. As the gate valve closes, the wedge travels down until it presses the valve seat, which would mean a complete shutoff. During the opening the wedge slides towards the upper part of the valve body.

A wedge gate valve construction did not alter a lot for the last 100 years. However, the design of some elements of the gate valve has undergone some modifications. Most of the changes are aimed at increasing the service life of the gate valve, improving the sealing characteristics, using superior quality materials and epoxy coatings for a better corrosion protection. At the same time, the modern gate valve body has a compact sleek design, allowing installations in limited space conditions.

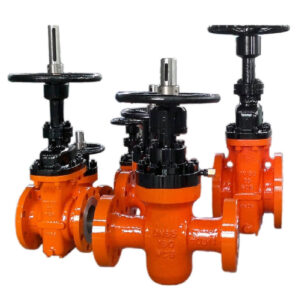

Parallel vs wedge-shaped gate valves

Gate valves can be divided into two main types: Parallel and wedge-shaped. The parallel gate valves use a flat gate between two parallel seats, and a popular type is the knife gate valve designed with a sharp edge on the bottom of the gate. The wedge-shaped gate valves use two inclined seats and a slightly mismatched inclined gate.

How does a gate valve work?

Gate valves are designed to turn the flow of a liquid on or off by restricting or opening the flow with a round or rectangular wedge. Gate Valves can also control the pressure of liquid flow through pipes or valves.

For custom size possibilities, please request a quote.

Valve Materials

We offer valves of various materials which can meet your needs on diverse occasions. Come get your valves right now!

Our Valves materials can be the following grade, another grade is also available on request.

valve application natual gas pipeline


Valves are found in virtually every industrial process, including water and sewage processing, mining, power generation, processing of oil, gas and petroleum, food manufacturing, chemical and plastic manufacturing and many other fields.

valve application 01


valve application 02


valve application 03

Thermal Power Plant

valve application 04

Steel Plant

valve application 05

Water Supply

valve application 06

Natural Gas Pipeline

Quality Control

A valve can be described as a mechanism that controls the passage of liquids through a pipe. Research states that valves being manufactured in China are amongst the top valve competitors in the valve industry.

Nondestructive Test

quality control nondestructive test 01
quality control nondestructive test 02
quality control nondestructive test 03

Radiography Inspection guarantees no failures inside of the castings or forgings. Ultrasonic inspection acts an alternative of inspection. Dye penetrant testing and magnetic particle testing can examine surface failures on castings and forgings.

Cryogenic Treatment

quality control cryogenic treatment 01
quality control cryogenic treatment 02
quality control cryogenic treatment 03

-196 ℃ Cryogenic Treatment System is a basic treatment for LNG usage valves or similiar applications.

Leakage Test

quality control leakage test 01
quality control leakage test 02
quality control leakage test 03

Leak testing is a procedure that inspectors use to determine whether an object or system is functioning within a specific leak limit.

Chemical Analysis

quality control chemical analysis 01
quality control chemical analysis 02

All our materials are strictly made under supervision of ladle analysis instrument in the foundries and inspected by high precision spectroanalysis instrument when they arrive in our plant.

Mechanical Properties Test

quality control mechanical properties test 01
quality control mechanical properties test 02

All mechanical properties test will act before we use the materials to secure the performance and safety.

Heat Treatment

quality control heat treatment 01
quality control heat treatment 02

Up to 1200 ℃ electric furnance provide an availability of various heat treatment cycles.

Frequently Asked Questions


How long is your delivery time?

The delivery time of customized products is generally 25 35 days, and non customized products are generally shipped within 24 hours after payment.

What are your payment terms?

T/T 30% as the deposit,The balance payment is paid in full before shipment

What is your minimum order quantity?

There is no minimum order quantity requirement. Customized products are tailor made according to the drawings provided by the customer.

Do you provide samples? Is it free?

If the value of the sample is low, we will provide it for free, but the freight needs to be paid by the customer. But for some high value samples, we need to charge a fee.

What is the packaging and transportation form?

Non steaming wooden box and iron frame packaging. Special packaging is available according to customer needs. The transportation is mainly by sea.


As part of our quality regimen, 100% of incoming raw materials, semi-finished products, as well as finished products are thoroughly inspected prior to being entered into our inventory. We have established multiple hold points throughout fabrication as well as a comprehensive final inspection for all products.

Need to inquire about our products? Fill out the form below and our staff will be in touch!
Contact Form Demo

Why Do I Need Wear Parts?

“Wear” is the last thing any business wants to experience with their machines. Apart from its unpleasant physicality, it could also be a sign that means your parts and/or components are about to break. You need wear parts to help prevent or prolong the wearing out of these parts and components – and that could be any type of wear parts such as pipes, liners, plates, etc.

What Kinds of Wear Plates Do You Offer?

Here at Sunny Steel, we put emphasis to the primary kinds and types of wear pipes and fittings – they include:
  • Ceramic Liner pipes and fittings
  • Ceramic tile lined pipes and fittings
  • Ceramic sleeve lined pipes and fittings
  • Cast basalt lined pipes and fittings
All of them have their particular uses, but these cover almost all the materials companies need to work on.

Merits and Salient Features

  • Extremely High Resistant to Abrasion, Erosion and Corrosion.
  • Resistant to most of the Chemicals, Alkalis and Acids.
  • Very Long life
  • Less Down time and Maintenance Cost.

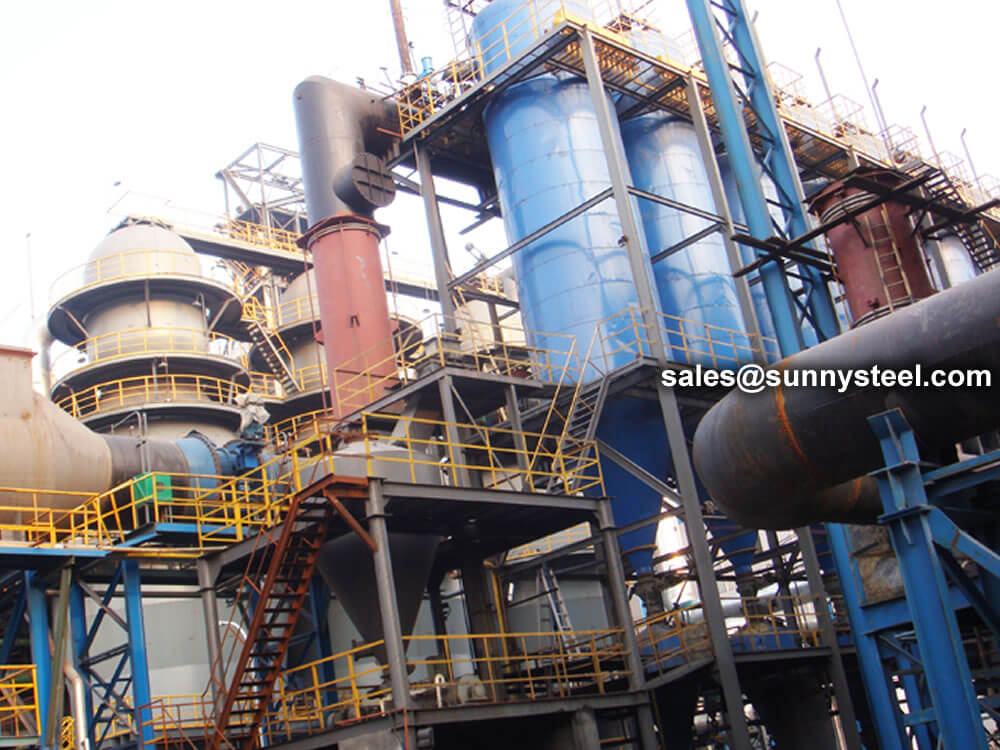

application of rare earth alloy wear resistant pipe
