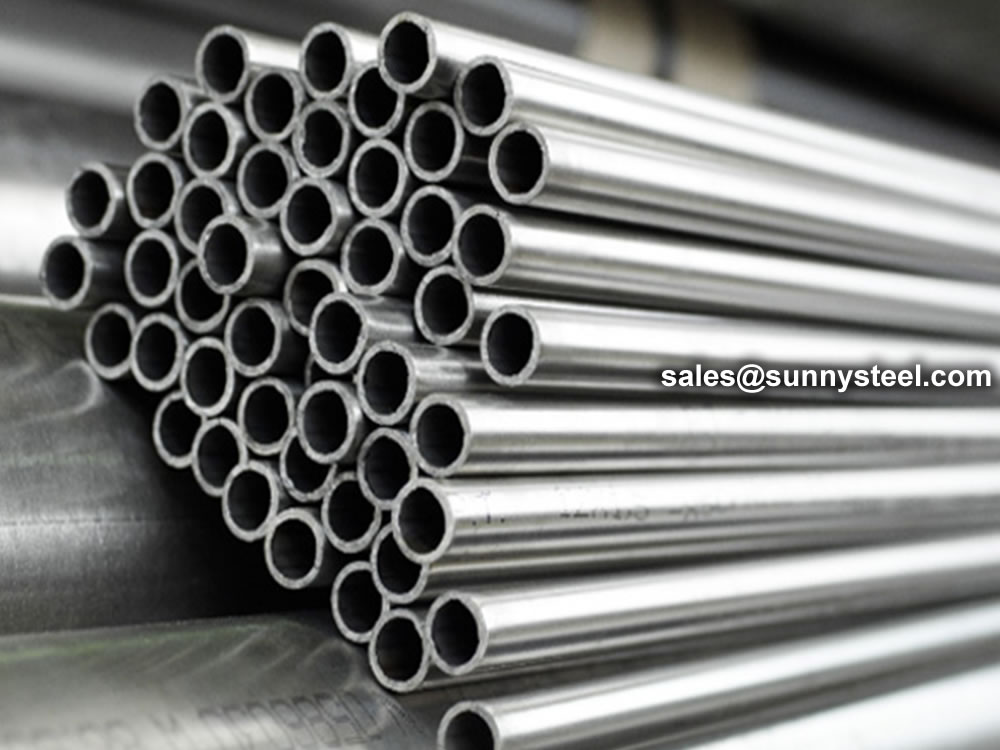

309 / 309S Stainless Steel Pipe/Tube
309 / 309S Stainless Steel Pipe/Tube

Stainless pipes & tubes

Stainless Steel Seamless Pipes is a hollow steel bar, a large number of pipes used for conveying fluids, such as oil, gas, water, gas, steam,heat exchanger,mechanical machine.

Comparison Between Stainless Steel Types 304 and 316

Why use wear resistant ceramic coatings?

Ceramic lined pipe 3 good properties

Composition of Stainless

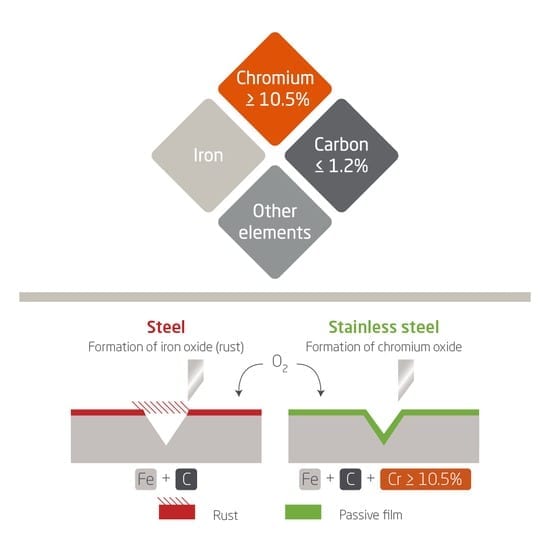

composition of stainless steel

Steel is an alloy of iron and carbon. Stainless steels are steels containing at least 10.5% chromium, less than 1.2% carbon and other alloying elements. Stainless steel’s corrosion resistance and mechanical properties can be further enhanced by adding other elements, such as nickel, molybdenum, titanium, niobium, manganese, etc.

Nickel and chromium

Chromium is what ensures stainless steel remains stainless. It is what creates a passive film to the metal to ensure it does not corrode. Other elements may add to the effectiveness of the film but none of them can really recreate the properties that enable the stainless steel to form fully. As you increase the percentage of chromium to your metal the passive film’s stability increases and the metal is protected better against wear and tear.

Nickel stabilizes the crystal structure of the steel and increases their properties and characteristics. A higher content percentage of nickel decreases the chance of the metal cracking due to corrosion or stress to the metal.


Manganese performs a lot of functions with nickel. It will interact with Sulphur found in the stainless steel in order to form manganese sulfites that increase resistance to corrosion. Substituting manganese for nickel and combining with nitrogen will increase the strength of the stainless steel.


Molybdenum when combined with chromium will stabilize the passive film when in the presence of chlorides. This makes it effectively prevent corrosion and crevice. Molybdenum and chromium provide a large increase in resisting corrosion in stainless steel.


Carbon increases the strength of the stainless steel. Adding carbon allows hardening of the steel when exposed to heat treatment which leads to stronger stainless steel.


Nitrogen stabilizes the structure of the stainless steel. It enhances the resistance to corrosion and strengthens the steel. The use of nitrogen allows for the increase of the molybdenum content to six percent that improves corrosion resistance whenever in chloride environments.

Niobium and Titanium

These two are used to reduce sensitization of the stainless steel. When the stainless steel is sensitized, corrosion can occur caused by precipitation of the chrome carbides as parts are cooled after welding. This depletes the weld area of chromium. Without this, the passive film will not be able to form and this will cause corrosion. Niobium and titanium react with carbon in order to form carbides so a passive film can form in the solution the chromium is left in.

Aluminum and Copper

Aluminum and copper and titanium when added to stainless steel precipitates its hardening. The three elements when put together form a bard microstructure as the soaking process continues at elevated temperature.

Selenium and Sulphur

Selenium and Sulphur when added with Stainless Steel gives it the ability to mold freely.
